Pinouts
Ethernet RJ45 B
- The normal straight cable is a 568B
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|
| O/W | O | G/W | B | B/W | G | Bn/W | Bn |

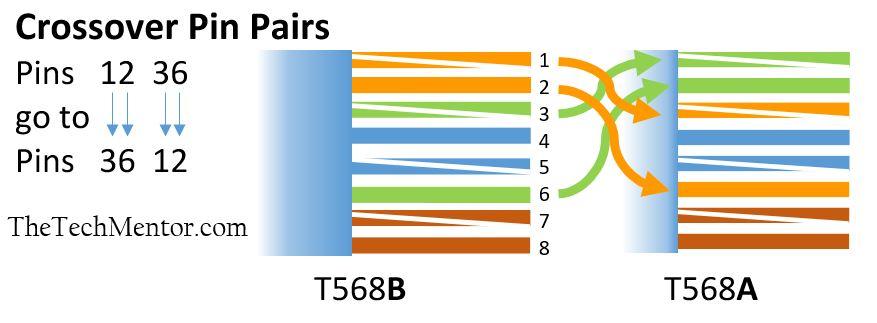

Ethernet X-over A-B
- for use without a switch/hub and where the device cannot do automatic cross-over itself.

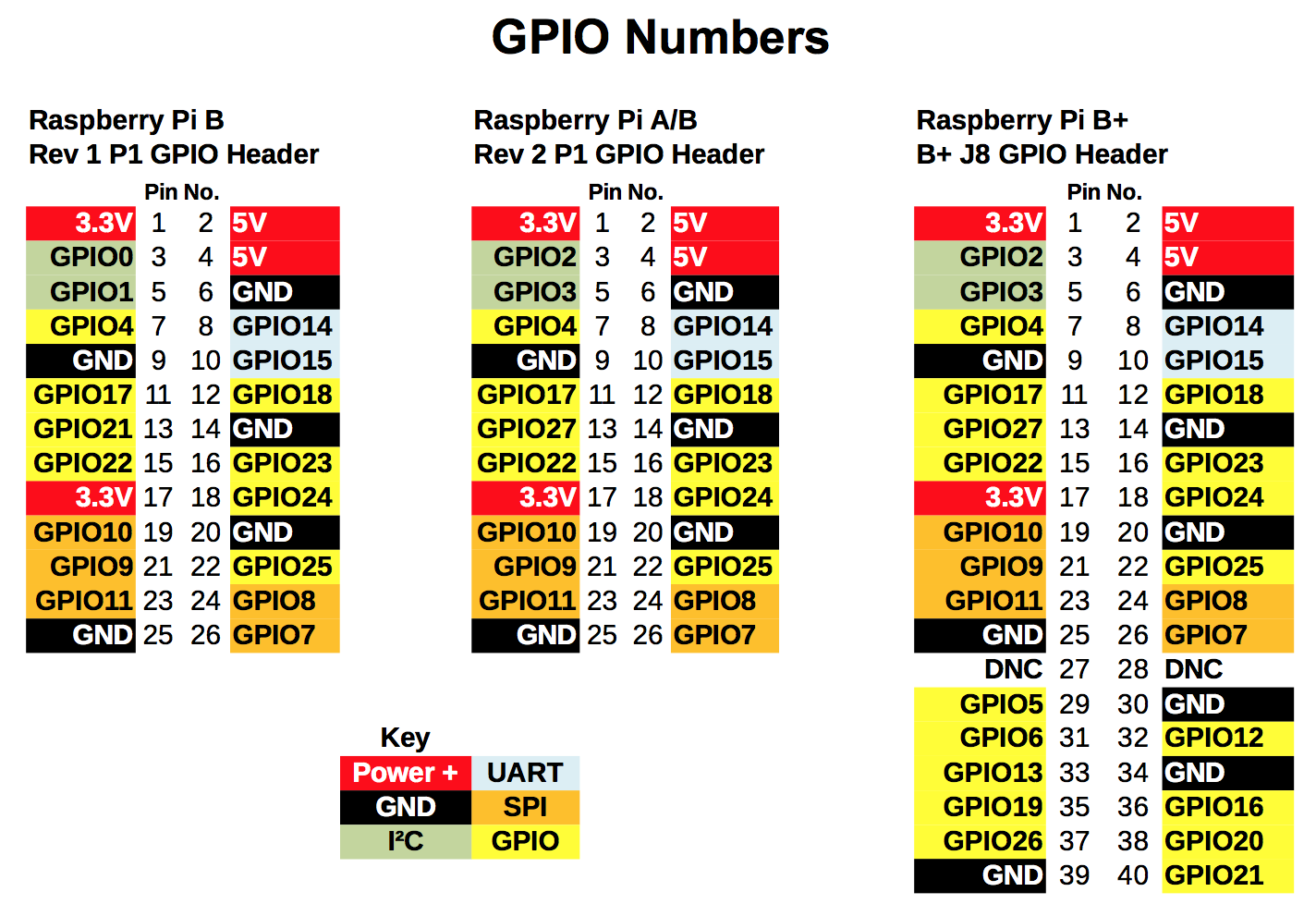

Raspberry Pi GPIO

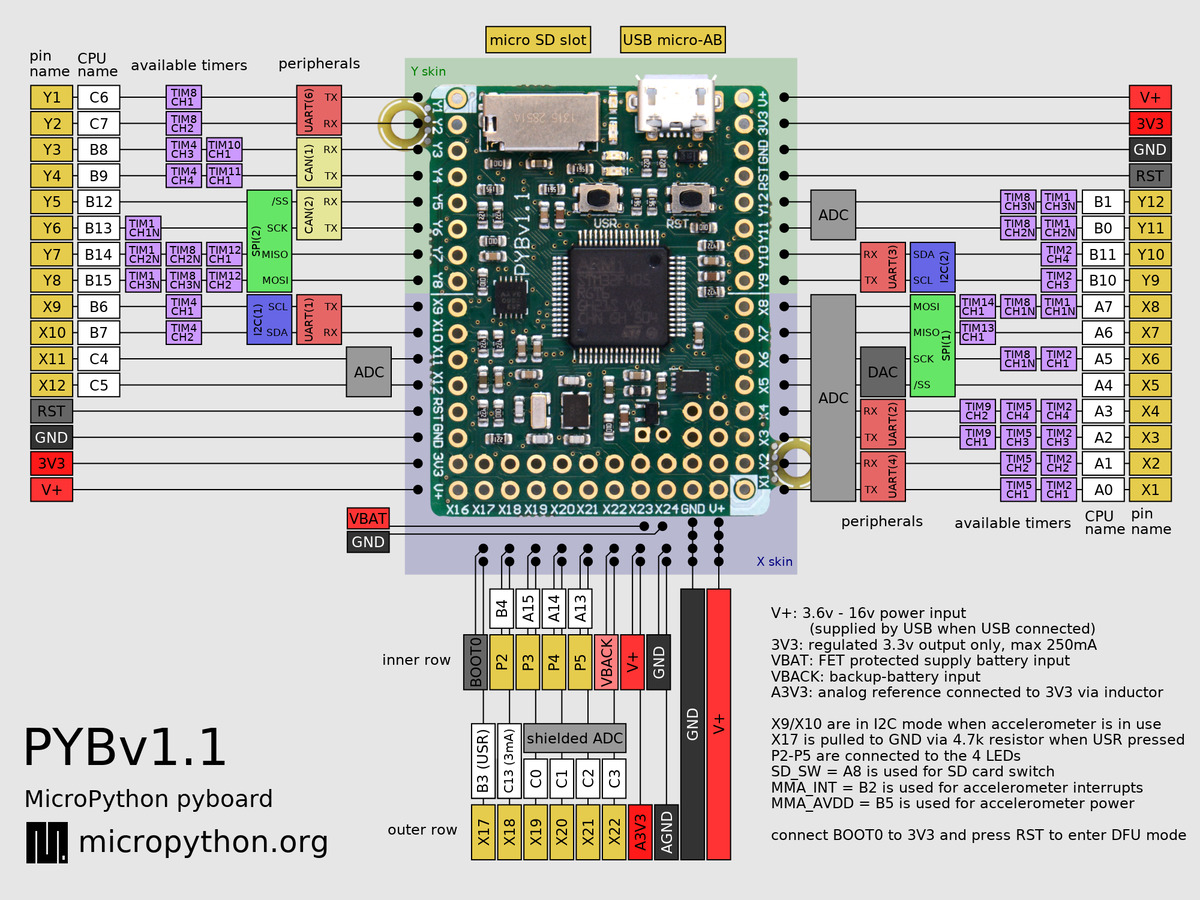

PyBoard
