Making a new IP allocation for the internal Allstar Nodes

Keep this range clear, and use for Allstar Nodes

• 192.168.21.240 - 192.168.21.249
  • IAX UDP Ports
    • 4569 - 4577
  • Supermon Port Forwards to these internal addresses
    • 42110 - 42119

• hostname : node481480.local
• IP Address : 192.168.21.240/24
• iax port : 4569
• supermon internal 80 / external 42110

• hostname : node481481.local
• IP Address : 192.168.21.241/24
• iax port : 4570
• supermon internal 80 / external 42111
• private internal node : 1399 → DVSwitch bridge to TGIF

• hostname : node481482.local
• IP Address : 192.168.21.242
• iax port : 4571
• supermon : internal 80 / external 42112
• private internal node : 1398 → DVSwitch bridge to DVSPh-F

• /etc/dhcpcdc.conf
• /etc/asterisk/rpt.conf
  • Set [nodes] stanza, as an example:

481480 = radio@127.0.0.1:4569/481480,NONE
481481 = radio@192.168.21.241:4570/481481,NONE
481482 = radio@192.168.21.242:4571/481482,NONE

• /var/www/html/supermon/allmon.ini
  • Change each node stanza tohave correct IP address for manager connection

While we're at it, make the web address auto-forward select all the nodes

• /var/www/html/index.php

<?php

header("Location: /supermon/link.php?nodes=481480,481481,481482,1399,1398");

• NAT Forwarding configuration

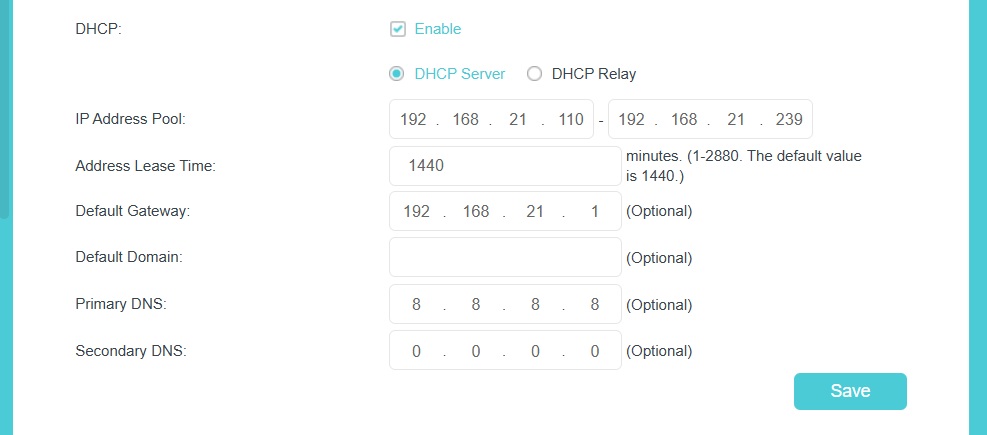

• DHCP Server Address Allocation Range must exclude Allstar 240 → 249 range
  • Set DHCP Server Address Allocation range to 192.168.21.110 → 192.168.21.239

— John Pumford-Green 07/06/25 16:32 BST
