Experimenting with remote access via IAX

• Edit /etc/asterisk/iax.conf
  • make new stanza for a named remote user and set an obscure password
  • looks like:

[NEW_USER_NAME]
type = user
context = iaxrpt    ; Context to jump to in extensions.conf
auth = md5
secret = NEW_TOP_SECRET_PASSWORD
host = dynamic
disallow = all
allow = ulaw
allow = adpcm
allow = gsm
transfer = no

• disable/remove default [iaxrpt] stanza
• Edit /etc/asterisk/extensions.conf
• ensure there's an extension that's pointed to by the context entry in the iax.conf stanza above
  • looks like:

; CONTEXT Pointed to from iax.conf
[iaxrpt]
exten => ${NODE},1,rpt(${NODE}|X)

• Legacy iaxRpt
  • https://hamvoip.org/downloads/setup_iaxrpt_xipar_010146.exe
    • setup_iaxrpt_xipar_010146.zip

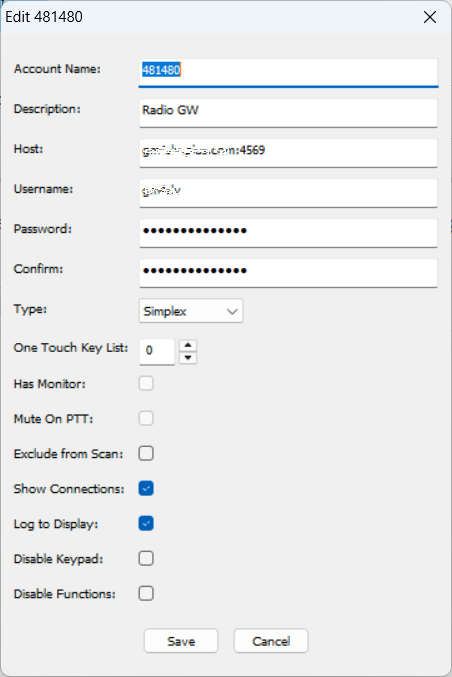

• configure like this
  • port is the node's normal iax UDP port, as set up in Allstar Portal and in iax.conf

• DVSwitch Mobile app

— John Pumford-Green 07/06/25 17:07 BST
