DMR HotSpots

Pi-Star and DVMega or MMDVM_HS Raspberry Pi “hat”

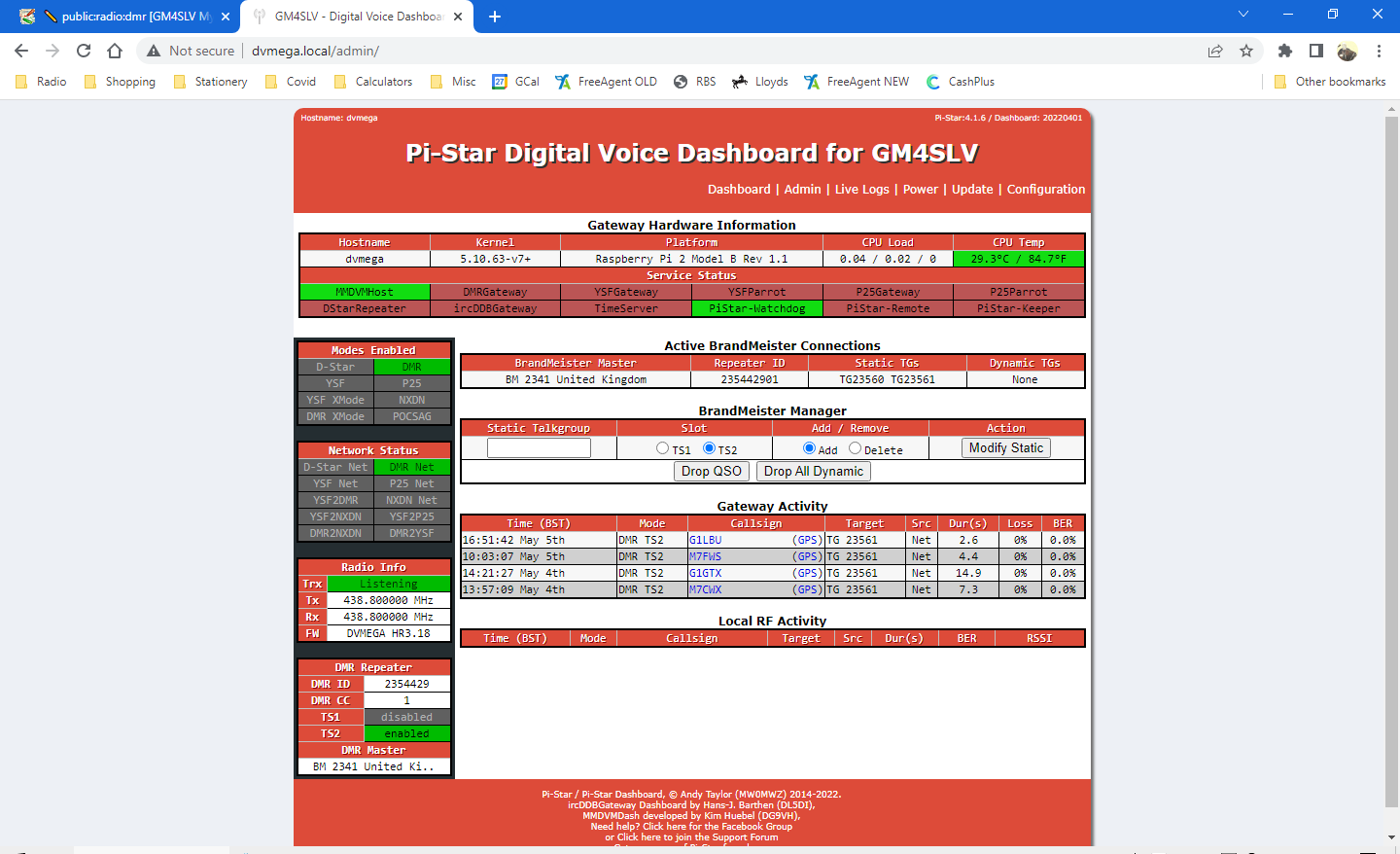

Currently connected to Brandmeister directly.

Previously it has used DMRGateway to control connections to three DMR networks:

Brandmeister
Phoenix / DMR+
TGIF

Update 3/10/22

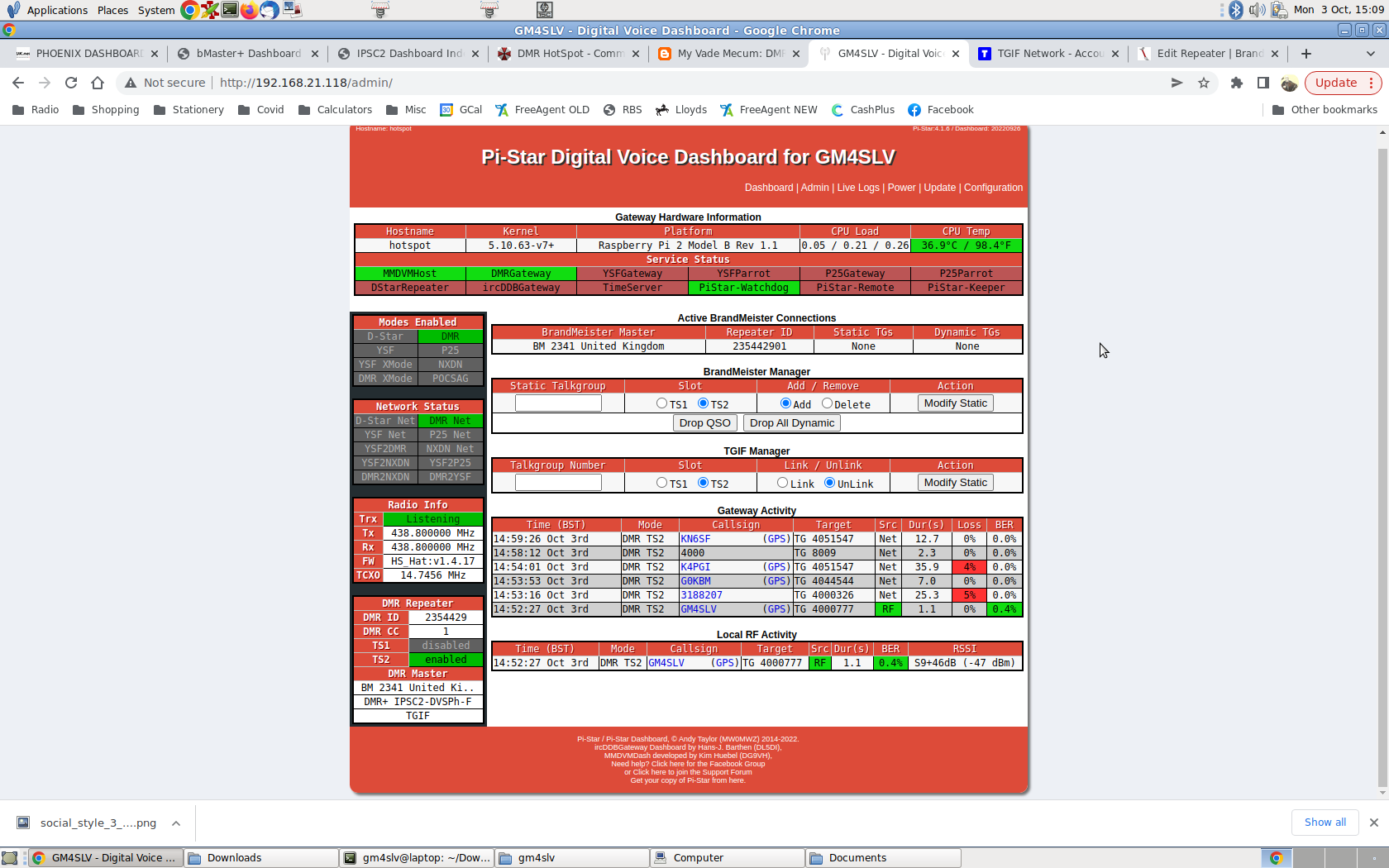

Hotspot active again, using DMR Gateway and 3 networks:

[General]
RptAddress=127.0.0.1
RptPort=62032
LocalAddress=127.0.0.1
LocalPort=62031
RuleTrace=0
Daemon=1
Debug=0
RFTimeout=20
NetTimeout=20

[Log]
DisplayLevel=0
FileLevel=1
FilePath=/var/log/pi-star
FileRoot=DMRGateway

[Voice]
Enabled=1
Language=en_GB
Directory=/usr/local/etc/DMR_Audio

[Info]
Enabled=0
RXFrequency=438800000
TXFrequency=438800000
Power=1
Latitude=60.2885
Longitude=-1.4252
Height=0
Location="Shetland"
Description="UK"
URL=https://www.qrz.com/db/GM4SLV

[XLX Network]
Startup=950
Enabled=0
File=/usr/local/etc/XLXHosts.txt
Port=62030
Password=passw0rd
ReloadTime=60
Slot=2
TG=6
Base=64000
Relink=60
Debug=0
Id=2354429
UserControl=1

[DMR Network 1]
Enabled=1
Address=2341.master.brandmeister.network
Port=62031
TGRewrite0=2,9,2,9,1
PCRewrite0=2,94000,2,4000,1001
TypeRewrite0=2,9990,2,9990
SrcRewrite0=2,4000,2,9,1001
PassAllPC0=1
PassAllTG0=1
PassAllPC1=2
PassAllTG1=2
Password="<Brandmeister Hotspot Password"
Debug=0
Id=<DMRID and SSID>
Name=BM_2341_United_Kingdom
Location=1

[DMR Network 2]
Enabled=1
Address=78.129.135.43
Port=55555
TGRewrite0=2,8001,2,1,999
TGRewrite1=2,82000,2,2000,999
TGRewrite2=2,823000,2,23000,999
TGRewrite3=2,89900,2,9900,99
PCRewrite0=2,84000,2,8009,1
PCRewrite1=1,85057,2,5057,1
Password="PASSWORD"
Debug=0
Id=235442901
Name=DMR+_IPSC2-PhoenixF
Location=0
Options="StartRef=4000;UserLink=1;TS1_1=235;"

[DMR Network 3]
Enabled=0
Name=HBLink
Address=1.2.3.4
Port=5555
TGRewrite=2,11,2,11,1
Password="PASSWORD"
Location=0
Debug=0
TGRewrite0=2,11,2,11,1

[DMR Network 4]
Enabled=1
Name=TGIF
PCRewrite1=1,4009990,1,9990,1
PCRewrite2=2,4009990,2,9990,1
TGRewrite1=1,4000001,1,1,999999
TGRewrite2=2,4000001,2,1,999999
SrcRewrite1=1,9990,1,4009990,1
SrcRewrite2=2,9990,2,4009990,1
SrcRewrite3=1,1,1,4000001,999999
SrcRewrite4=2,1,2,4000001,999999
Address=tgif.network
Password=<TGIF Hotspot Access Key>
Port=62031
Location=0
Debug=0
Id=<DMRID and SSID>

[GPSD]
Enable=0
Address=127.0.0.1
Port=2947

[APRS]
Enable=1
Address=127.0.0.1
Port=8673
Description=APRS for DMRGateway
Suffix=DMR

[Dynamic TG Control]
Enabled=1
Port=3769
