Anytone Smart CB / 10M
Small 11m/10m AM/FM mobile
- Bought May 2023 from http://www.4x4cb.com/index.cfm - very helpful and friendly CB dealership - well recommended
Modification
- Modification to “Export Model” to provide all 11m CB bands plus some of 10m (and 12m) amateur bands

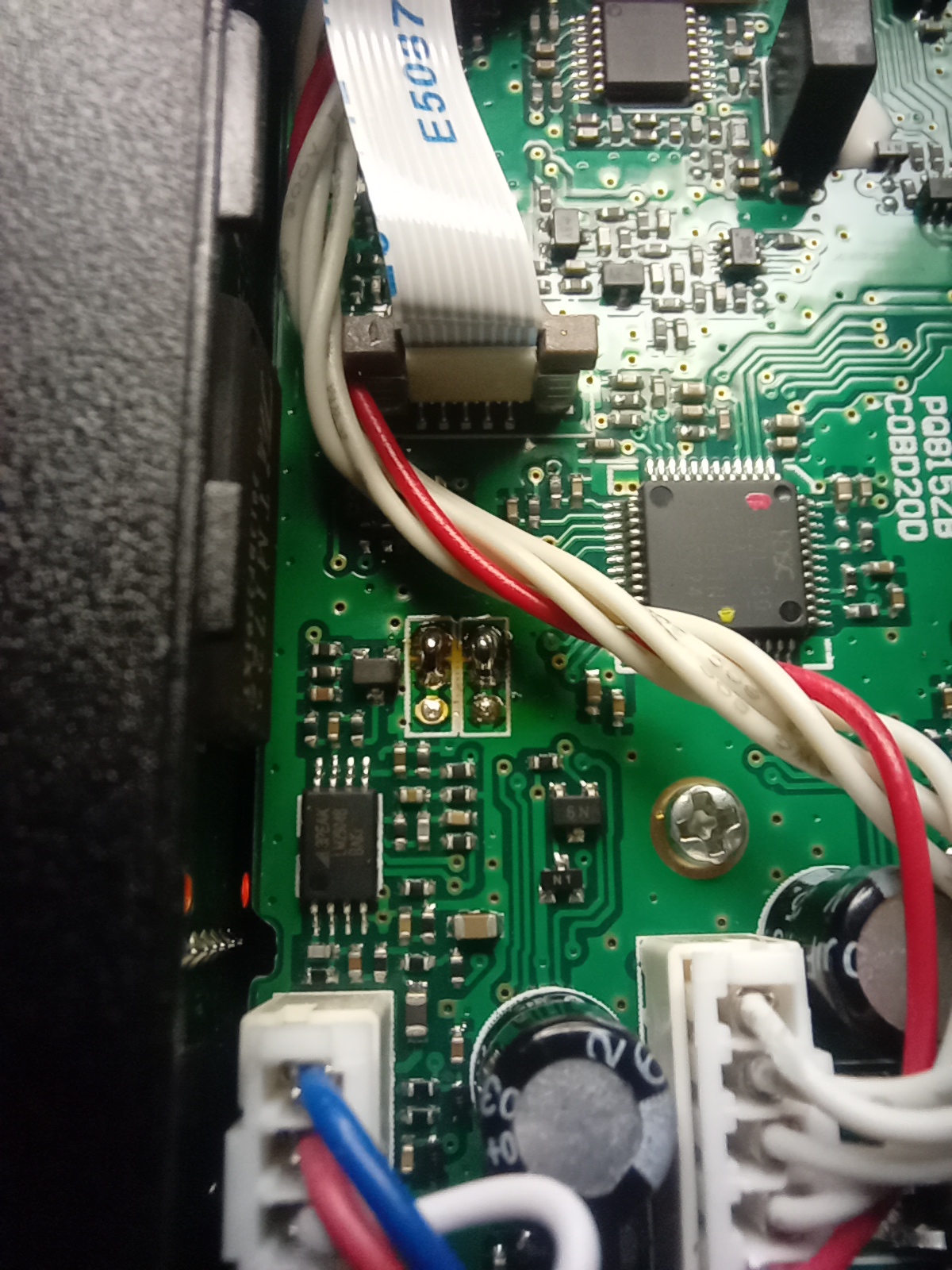

- Solder 2 jumper pads as per photo:
- Resulting 14 bands can be selected:
Power-on
while holding A/F and cycling through with Mic UP and DN buttons- Once selected :
Power Off
,Power On
. Display briefly shows active band

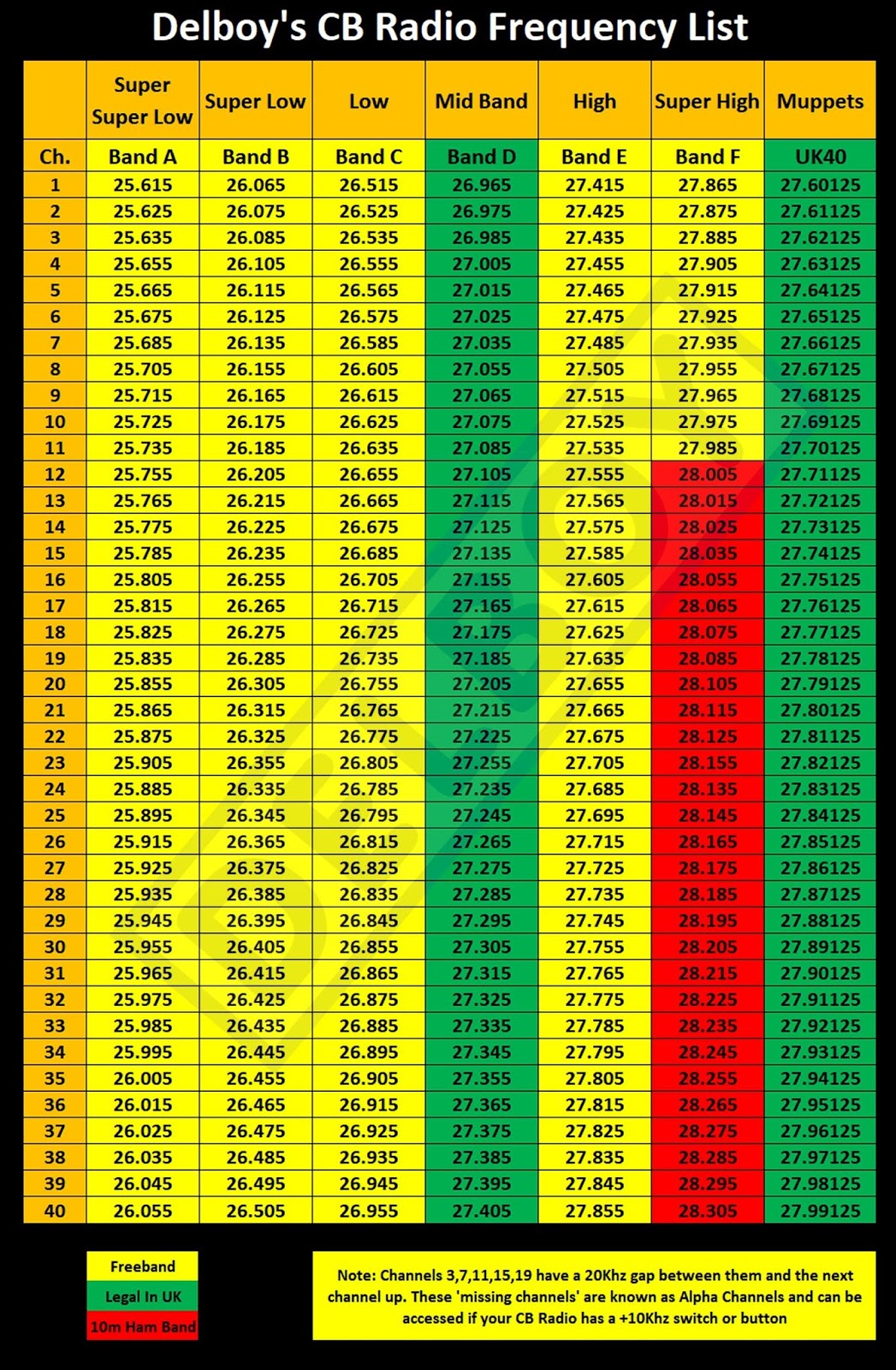

Band | Channel 1 | Channel 40 | Comments |
---|---|---|---|
A | 25.615 | 26.055 | SS Low |
B | 26.065 | 26.505 | S Low |
C | 26.515 | 26.955 | Low |
D | 26.965 | 27.405 | Mid / CEPT EU |
E | 27.415 | 27.855 | High |
F | 27.865 | 28.305 | S High / 10m |
G | 28.315 | 28.755 | 10m |
H | 28.765 | 29.205 | 10m |
I | 29.215 | 29.655 | 29.600 = CH35 R |
J | 29.665 | 30.105 | 10m + |
† | 25.165 | 25.605 | |
L | 24.715 | 25.155 | |
N | 24.890 | 24.990 | 21 Channels 12m Ham |
U† | 27.60125 | 27.99125 | UK CB |
- All channels (except in Band N/12m) end in 5kHz. To drop to -5kHz (end in 0kHz) press/hold RFG.
R
is displayed.- For 10m FM on
Band I
29.600 is Channel 35R
- The bands follow the usual CB pattern, with 10kHz jumps,
Alpha
Channels between3, 7, 11, 15, 19
. The Smart CB includes these as3A, 7A, 11A, 15A and 19A
. - All bands (except
Band N
12m which only has 21 channels) follow the CB channel protocol of out of sequence channels22, 23, 24, 25, 26
thus- Band I (10m FM) with -5kHz
R
activated- Channel 22R : 29.470
- Channel 23R : 29.500
- Channel 24R : 29.480
- Channel 25R : 29.490
- Channel 26R : 29.510
- The Channels, in frequency order :
…22,24,25,23,26…
- To select Output Power:
- Press/hold RFG, PTT and
Power On
- Use Mic UP and DN to cycle through 3 power levels:
- PL = 4W
- Pn = 8W
- PH = 15W
- Once selected :
Power Off
,Power On
- 15W might be overdoing it - in such a small package with limited heatsinking. 8W is probably the best option.
10m Channels
Assume R
-5kHz is active
Also check with R
inactive (freq. ends with 5kHz)
Band | Channel | Frequency | Comments | Activity? |
---|---|---|---|---|
H | 1 | 28.760 | ||
H | 2 | 28.770 | ||
H | 3 | 28.780 | ||
H | 3A | 28.790 | ||
H | 4 | 28.800 | ||
H | 5 | 28.810 | ||
H | 6 | 28.820 | ||
H | 7 | 28.830 | ||
H | 7A | 28.840 | ||
H | 8 | 28.850 | ||
H | 9 | 28.860 | ||
H | 10 | 28.870 | ||
H | 11 | 28.880 | ||
H | 11A | 28.890 | ||
H | 12 | 28.900 | ||
H | 13 | 28.910 | ||
H | 14 | 28.920 | ||
H | 15 | 28.930 | ||
H | 15A | 29.940 | ||
H | 16 | 28.950 | ||
H | 17 | 28.960 | ||
H | 18 | 28.970 | ||
H | 19 | 28.980 | ||
H | 19A | 28.990 | ||
H | 20 | 29.000 | AM | |
H | 21 | 29.010 | AM | |
H | 22 | 29.020 | AM | |
H | 23 | 29.050 | AM | |
H | 24 | 29.030 | AM | |
H | 25 | 29.040 | AM | |
H | 26 | 29.060 | AM | |
H | 27 | 29.070 | AM | |
H | 28 | 29.080 | AM | |
H | 29 | 29.090 | AM | |
H | 30 | 29.100 | FM | |
H | 31 | 29.110 | FM | |
H | 32 | 29.120 | FM | |
H | 33 | 29.130 | FM | |
H | 34 | 29.140 | FM | |
H | 35 | 29.150 | FM | |
H | 36 | 29.160 | FM | |
H | 37 | 29.170 | FM | |
H | 38 | 29.180 | FM | |
H | 39 | 29.190 | FM | |
H | 40 | 29.200 | FM |
Band | Channel | Frequency | Comments | Activity? |
---|---|---|---|---|
I | 1 | 29.210 | ||
I | 2 | 29.220 | ||
I | 3 | 29.230 | ||
I | 3A | 29.240 | ||
I | 4 | 29.250 | ||
I | 5 | 29.260 | ||
I | 6 | 29.270 | Simplex Gateway | |
I | 7 | 29.280 | Simplex Gateway | |
I | 7A | 29.290 | Simplex Gateway | |
I | 8 | 29.300 | Sat | |
I | 9 | 29.310 | Sat | |
I | 10 | 29.320 | Sat | |
I | 11 | 29.330 | Sat | |
I | 11A | 29.340 | Sat | |
I | 12 | 29.350 | Sat | |
I | 13 | 29.360 | Sat | |
I | 14 | 29.370 | Sat | |
I | 15 | 29.380 | Sat | |
I | 15A | 29.390 | Sat | |
I | 16 | 29.400 | Sat / FM? | |
I | 17 | 29.410 | Sat / FM? | |
I | 18 | 29.420 | Sat / FM? | |
I | 19 | 29.430 | Sat / FM? | |
I | 19A | 29.440 | Sat / FM? | |
I | 20 | 29.450 | Sat / FM? | |
I | 21 | 29.460 | Sat / FM? | |
I | 22 | 29.470 | Sat / FM? | |
I | 23 | 29.500 | Sat / FM? | |
I | 24 | 29.480 | Sat / FM? | |
I | 25 | 29.490 | Sat / FM? | |
I | 26 | 29.510 | Guard | |
I | 27 | 29.520 | RH1 In | |
I | 28 | 29.530 | RH2 In | |
I | 29 | 29.540 | RH3 In | |
I | 30 | 29.550 | RH4 In | |
I | 31 | 29.560 | RH5 In | |
I | 32 | 29.570 | RH6 In | |
I | 33 | 29.580 | RH7 In | |
I | 34 | 29.590 | RH8 In | |
I | 35 | 29.600 | FM Calling | |
I | 36 | 29.610 | Parrot | |
I | 37 | 29.620 | RH1 Out | |
I | 38 | 29.630 | RH2 Out | |
I | 39 | 29.640 | RH3 Out | |
I | 40 | 29.650 | RH4 Out |
Band | Channel | Frequency | Comments | Activity? |
---|---|---|---|---|
J | 1 | 29.660 | RH5 Out | |
J | 2 | 29.670 | RH6 Out | |
J | 3 | 29.680 | RH7 Out | |
J | 3A | 29.690 | RH8 Out | |
J | 4 | 29.700 |
