Icom IC-M710
Repairs / Mods
2023 : No Transmit Output Power.
- Receive functions normally

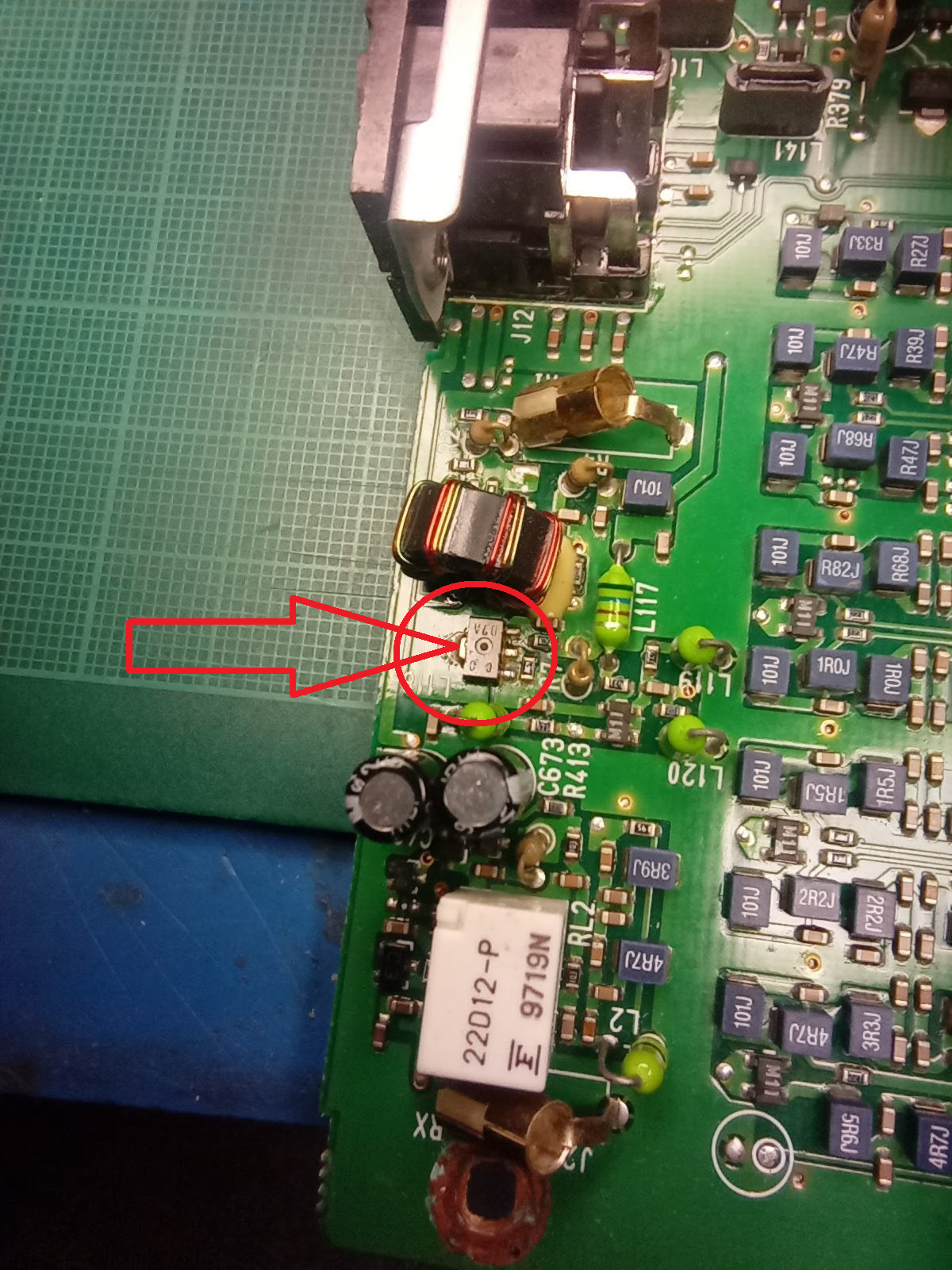

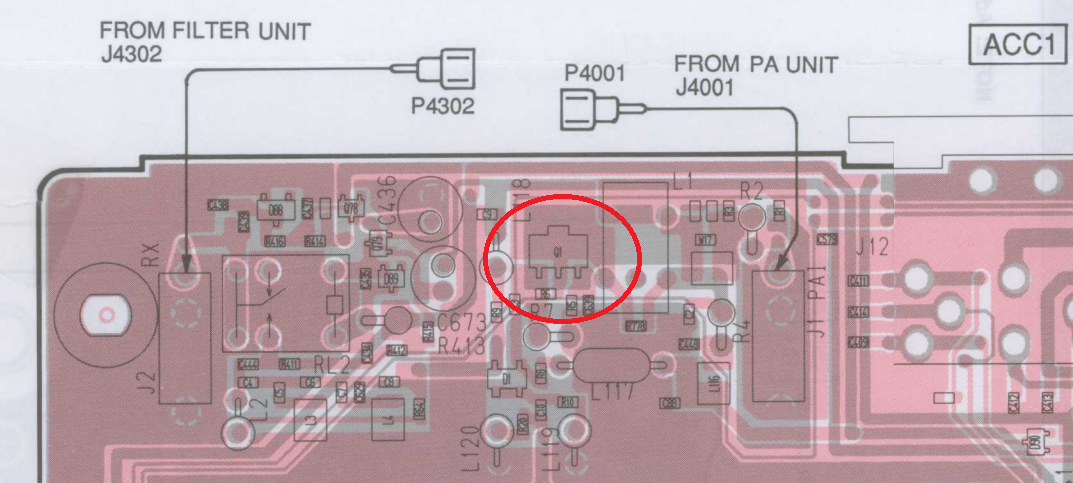

- trace to - pre-drive TX buffer amp transistor - Q1 Main PCB
- No Drive to PA from Main Board

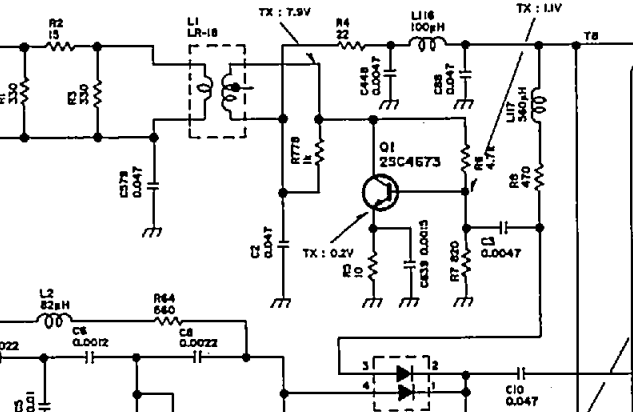

- TX signal present at base of Q1 but no signal at collector
- Q1 2SC4673 sourced from eBay https://www.ebay.co.uk/itm/322993473692

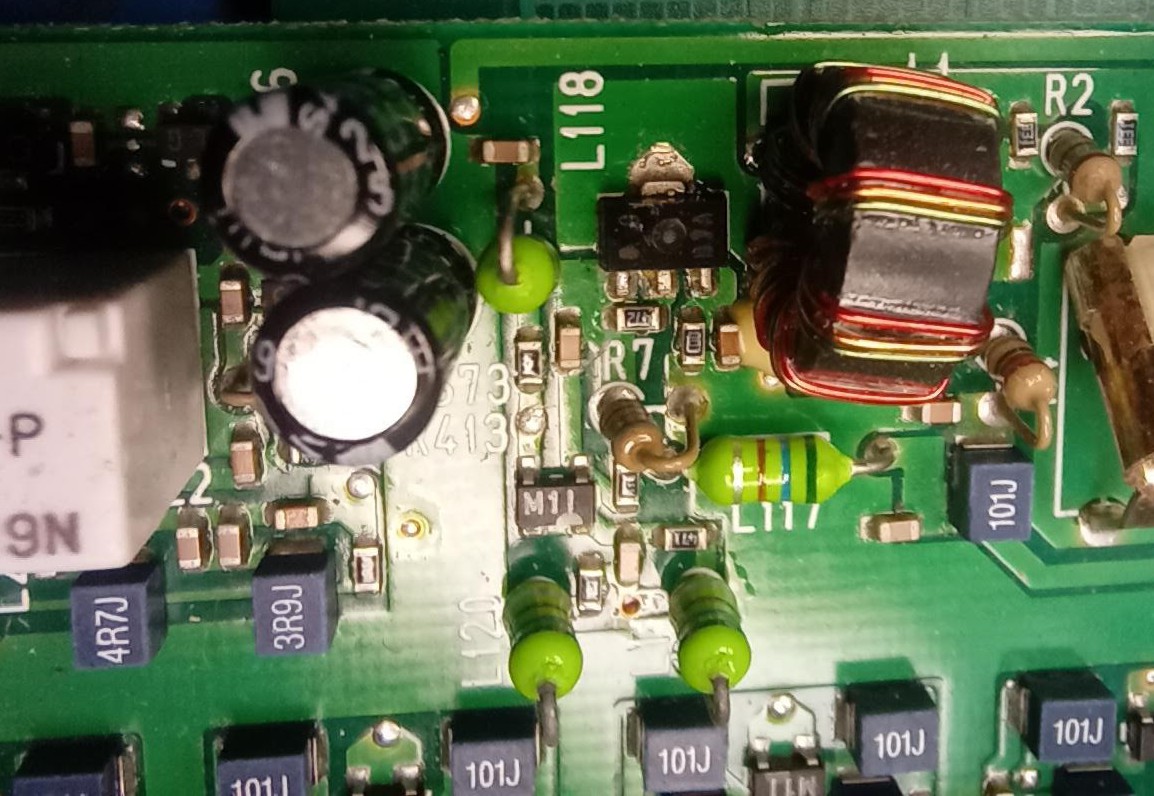

- 07/02/23 : Replaced Q1 and full transmit power restored.
Remote Control
Python module for netradio
Some functions aren't needed for receive only, and should be removed (ptt_on ptt_off etc.). This module originally came from another project (not “object oriented”) and I had to add lots of self statements to the needed functions, ignoring the ones not used for “netradio”. I'll trim it, later, if I remember.
- m710.py
''' Python NMEA Radio Functions module for Icom IC-M710 Marine HF SSB Transceiver Copyright (C) 2015 John Pumford-Green This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, see <http://www.gnu.org/licenses/>. ''' # serial port for Icom IC-M710 Rig Control import serial import threading import time version = "v0.1" sport = '/dev/ttyUSB0' sbaud = 4800 #ser = serial.Serial(sport, 4800, timeout=1) lock = threading.Lock() # NMEA Codes preamble = "$PICOA," controller = "90" radio = "01" cr = "\x0d" lf = "\x0a" # Commands are sent as NMEA private sentences: # # $PICOA,controller_id,radio_id,command,<parameter>,*HH<CR><LF> # # where HH is the 2 digit ECC value below: # # The protocol document states that for messages FROM the controller TO the radio # the ECC bytes are optional, and may be omitted. This appears to be false information, and # the ECC bytes seem to be necessary. # # The ECC checksum, is a two-digit hex value found by XORing the hex values of the characters # between "$" and "*" (but not including the $ or *) # # The first part of the message is always: # "PICOA,90,01," and this has an XOR value of (decimal) 112 # we then XOR this with each character's decimal ASCII value, in the required command # and convert the result to a 2-digit hex value # class m710(object): def __init__(self, model): self.ser = serial.Serial(sport, sbaud, timeout=0.1) self.model = model print "model", model def get_ecc(self,command): ecc = 112 for c in command: ecc = ord(c) ^ ecc hecc = '{0:02x}'.format(int(ecc)) return hecc # we must force the radio into "Remote" mode before sending any other commands. def remote_on(self): command = "REMOTE,ON" ecc = self.get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: return else: return self.remote_on() # we can leave the radio in "Remote" mode for as long as we want to control it remotely # but we must close the "Remote" mode when finished. The previous radio settings (channel/power etc) are # restored after Remote mode is closed. def remote_off(self): command = "REMOTE,OFF" ecc = self.get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: #ser.close() return else: return self.remote_off() def ptt_on(): command = "TRX,TX" ecc = get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = tx_rx(sendStr) if result: return else: return ptt_on() def ptt_off(): command = "TRX,RX" ecc = get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = tx_rx(sendStr) if result: return else: return ptt_off() def get_freq(self): fkhz = self.get_rxfreq() #fkhz = "%.3f" % (float(f) * 1000) return fkhz def set_freq(self,freq): self.set_rxfreq(freq) self.set_txfreq(freq) return "Set freq success" def get_rxfreq(self): command = "RXF" ecc = self.get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: list = result.split(",") f = list[4].split("*")[0] fkhz = "%.3f" % (float(f) * 1000) return fkhz else: return self.get_rxfreq() def get_txfreq(self): command = "TXF" ecc = get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: list = result.split(",") f = list[4].split("*")[0] fkhz = "%.3f" % (float(f) * 1000) return fkhz else: return self.get_txfreq() def get_mode(self): command = "MODE" ecc = self.get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: list = result.split(",") mode = list[4].split("*")[0] return mode else: return self.get_mode() def set_mode(self,mode): mode = mode.upper() command = "MODE,"+mode ecc = self.get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf print "in set_mode with ", sendStr result = self.tx_rx(sendStr) if result: return result else: return self.set_mode(mode) def set_rxfreq(self,freq): fmhz = float(freq) / 1000 f = str(fmhz) command = "RXF,"+f ecc = self.get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: return result else: return self.set_rxfreq(freq) def set_txfreq(self,freq): fmhz = float(freq) / 1000 f = str(fmhz) command = "TXF,"+f ecc = self.get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: return result else: return self.set_txfreq(freq) def get_txpower(): command = "TXP" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: list = result.split(",") power = list[4].split("*")[0] return power else: return get_txpower() def set_txpower(p): command = "TXP,"+p ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return set_txpower(p) def get_smeter(self): command = "SIGM" ecc = self.get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = self.tx_rx(sendStr) if result: list = result.split(",") smeter = list[4].split("*")[0] return smeter else: return self.get_smeter() def speaker_on(): command = "SP,ON" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return speaker_on() def speaker_off(): command = "SP,OFF" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return speaker_off() def sql_on(): command = "SQLC,ON" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return sql_on() def sql_off(): command = "SQLC,OFF" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return sql_off() def nb_on(): command = "NB,ON" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return nb_on() def nb_off(): command = "NB,OFF" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return nb_off() def dim_on(): command = "DIM,ON" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return dim_on() def dim_off(): command = "DIM,OFF" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return dim_off() def agc_on(): command = "AGC,ON" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return agc_on() def agc_off(): command = "AGC,OFF" ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return agc_off() def get_vol(): command = "AFG" ecc = get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = tx_rx(sendStr) if result: list = result.split(",") vol = list[4].split("*")[0] return vol else: return get_vol() def set_vol(v): command = "AFG,"+v ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return set_vol(v) def get_rfg(): command = "RFG" ecc = get_ecc(command) sendStr = preamble+controller+","+radio+","+command+"*"+ecc+cr+lf result = tx_rx(sendStr) if result: list = result.split(",") rf = list[4].split("*")[0] return rf else: return get_rfg() def get_att(self): return def get_pre(self): return def set_rfg(v): command = "RFG,"+v ecc = get_ecc(command) sendStr = preamble +controller+","+radio+"," + command + "*"+ecc+cr+lf result = tx_rx(sendStr) if result: return result else: return set_rfg(v) # The message FROM the radio may be corrupted so we do a check on the received ECC versus our calculated cECC # from the received characters - which are everything AFTER the "$" and BEFORE the "*" # # starting the ECC calculation at message[1] ignores the "$" and we iterate through the message XORing each # character's ASCII (decimal) value until we have the final cECC which is converted by formatting it # into a two-digit hex value. This is then compared to the received (rECC) value from the radio's message. # If they match the message is acceptable and check_ecc() returns True to tx_rx(), # otherwise check_ecc() function returns "False" to tx_rx() # the True/False value is tested in tx_rx(). # If True then tx_rx() returns the incoming string to the calling function # otherwise it returns "False". # The calling function then checkS the boolean state of the returned value. # If True (ie it has the radio's message and the ECC was good) the message # is sent back to the client. # If False the function calls itself again, and attempts to get an error-free reply from the radio, via tx_rx() def check_ecc(self,message, recc): i = 1 cecc = 0 while i < len(message): cecc = ord(message[i]) ^ cecc i += 1 cecc = '{0:02x}'.format(int(cecc)) if cecc == recc: return True else: return False def tx_rx(self,sendStr): print "in tx_rx, sendStr = " , sendStr lock.acquire() self.ser.write(sendStr) time.sleep(0.1) result = self.ser.readline() print result reply = result.split("*") ecc = reply[1][0:2].lower() message = reply[0] lock.release() if self.check_ecc(message, ecc): return result else: return False #
Documentation
