• To access Service Mode

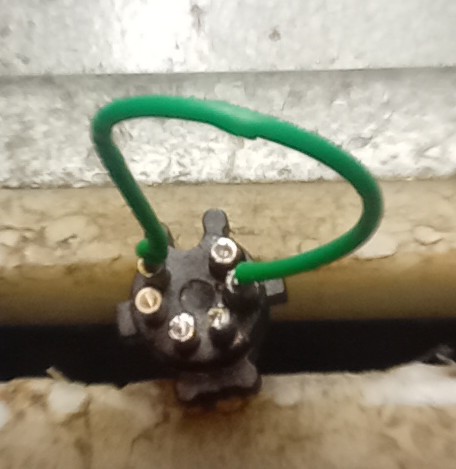

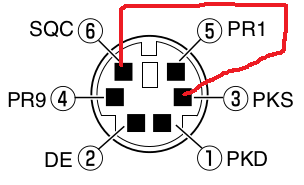

  • Make 6-pin data plug with pins 3 & 6 connected
  •
  •
  • Plug into Data Socket on Main Unit
  • Power up while holding Left 2 Function buttons
• To set powers, rotate main knob to find “HPWR V” etc.
  • Note current settings of all 6 parameters
    • HPWR V 216
    • MPWR V 148
    • LPWR V 137
    • HPWR U 225
    • MPWR U 106
    • LPWR U 83
  • Adjust each to achieve required power (Press PTT, Look at Power meter, rotate Main Knob with relevant figure selected…..)
    • New settings (high power set to keep current below 10A)
      • HPWR V 172 → 25W (current 6.5A)
      • MPWR V 148 → 10W
      • LPWR V 137 = 5W
      • HPWR U 133 → 20W
      • MPWR U 102 → 10W
      • LPWR U 83 = 5W
  • Power off
  • Remove plug
  • Power on

• I found a You Tube video showing the procedure, so I didn't bother making my own!
  • https://youtu.be/7pawM502eas
